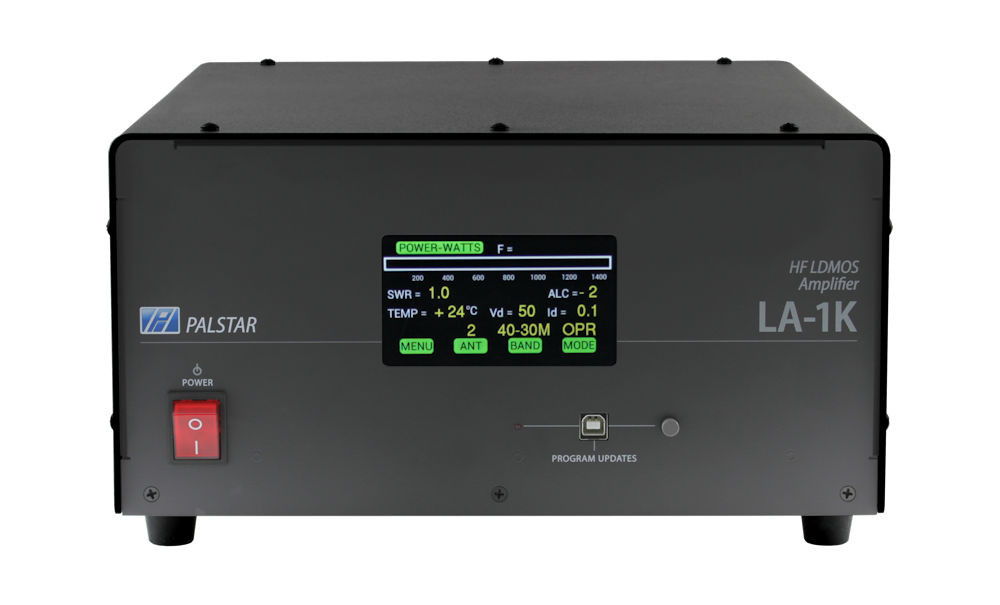

The LA-1K is a RF Sensing Dual HF LDMOS 1000 Watt Amplifier. While the LA-1K will work with a wide variety of tuners and transceivers, Palstar custom-design the LA-1K to work as the perfect match for the very popular HF-AUTO auto tuner.

PROUDLY MADE IN THE USA

SPECIFICATIONS:

SSB Power: 1000 Watts PEP CW ICAS
CW Mode: Power levels up to 850 Watts
FM/RTTY: 500 Watts
AM: 275 Watts
Frequency Range: 1.8 to 54 MHz
Display: Color TFT touch screen
Output: 3 - RF SO-239
ALC: Exciter power control
Drive Required: 40W - 55W (All Bands)
Gain: 13+/-1dB (NOMINAL)
RF Sensing: Auto Band Switching
RF Output: Vacuum RELAY T/R Switching
Power supply: Internal Medical grade
DC Supply: 100VAC - 260 AC 50V@42A
Power Devices: 2 x 5600H 600W (LDMOS)
AutoProtect: SWR/Short Circuit/Over-temp
Inter-modulation: Low IM Distortion >-35dB
Pure signal: Sample@+10dBm (Rear Panel@1kW output)
Cooling: Variable Speed Fans (3 speed)
Chassis: .090 ga. Aluminum
Top cover: .090 ga. Aluminum powder coated
Dimensions: 12.75" wide x 6.25" high x 16.5" deep
Shipping weight: 27 lbs, 12.25 Kg
Design concept: Full compatibility with the Palstar HF-AUTO auto tuner
Warranty: One (1) Year Limited Warranty
