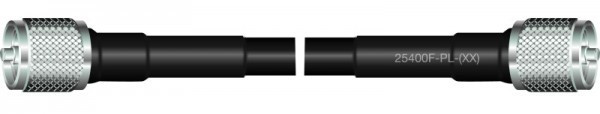

9 Foot 25400F Coax W/ PL259 Connector

• ABR#: 25400F RG8/U size:.405″ Low Loss Cable for frequency range from 144Mhz and up.

• UV Resistant & Direct Burial Jacket (no need to install in conduit)

• Best Grade Silver PL259 connectors installed on Each End.

• Weather-Proof Heat Shrink Tubing (HST) Each End.

• Very Flexible great for rotatable antennas, routing through tight locations.

• 10GA Stranded Very Flexible.


• Frequency range 144MHZ (2 Meters), 440MHz and up to 1Ghz w/N Connectors.


• Non-Contaminating-UV Resistant-Direct Burial Black Jacket.

• Closed Cell Gas Injected Foam Polyethylene Dielectric VP: 84%

• All cable are fully tested. Hi-Pot® and continuity.

• • Voltage DC: 2500Volts RMS: 8000

    • Maximum permissible D.C. voltage lever is conservatively 3 times the A.C. level.

  • PP kW: 16

  • RoHS Compliant.

  • Overall Diameter: .405″

  • 10#/100ft.

Nominal Attenuation-per 100ft/Power Rating(kW)/Efficiently%

• 0.5dB @ 10MHz/4.83kW/89.8% E.

• 0.8dB @ 30MHz/2.77kW/83% E.

• 1.1dB @ 50MHz/2.14kW/78.5% E.

• 1.8dB @ 150MHz/1.22kW/65.4% E.

• 3.3dB @ 450MHz/0.69kW/47.3% E.
